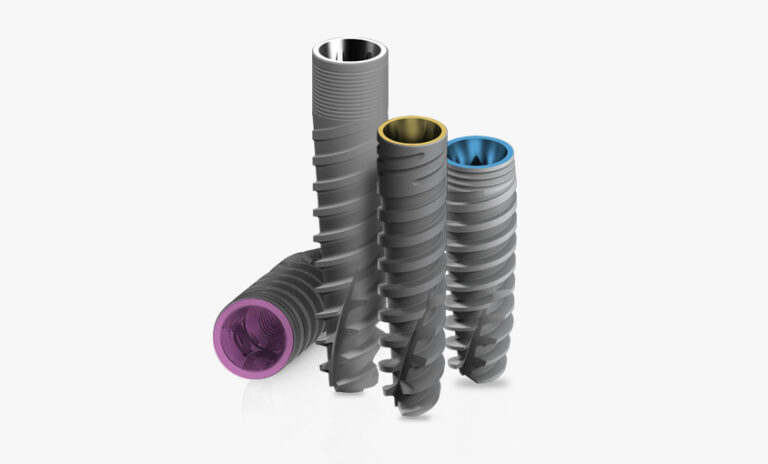

Conical Connection CloseFit™: When you’re seeking to minimize micro movements between the dental implant and the abutment and to reduce potential bone loss, you’ll benefit from Adin’s CloseFit™ spiral implant system, which features an extremely strong, stable and solid conical-hex connection.
The CloseFit’s tapered core implant includes a multi lead active & dynamic thread design.
The unique design of the implant is suited for optimal repositioning at diverse angles within the lower and upper jaw. Designed for Subcrestal placement up to 1.0 – 2.0mm.
The CloseFit™ implants feature Adin’s OsseoFix™ – A biocompatible surface treatment that uses gritting with Calcium Phosphate media that is debris free and has been designed to achieve the desired roughness levels needed for optimal osseointegration.
UNP
NP
RP
WP
UNP CloseFit™
Narrow Implant 2.75mm
With more than 10 years of proven clinical experience, these uniquely designed small diameter implants of 2.75mm & 3.0mm, have an especially narrow body & collar to provide a perfect solution that addresses narrow ridges in atrophic jaws for exceptional esthetic’s results. The strong Conical Connection designed to minimize micro movements.
UNP CloseFit™ Advantages:
• Conical-Hex Connection No Micromovements • Built-In Platform Switching • OsseoFix™ – Titanium implant surface treatment that uses gritting with calcium phosphate media that is debris free and has been designed to achieve the desired roughness levels needed for optimal osseointegration. The OsseoFix™ is biocompatible. • Triple lead thread with 3.0mm (3x1mm) pitch for fast insertion • Flat and narrow apex 2.0mmD, allows implantation in narrow ridges and tight spaces

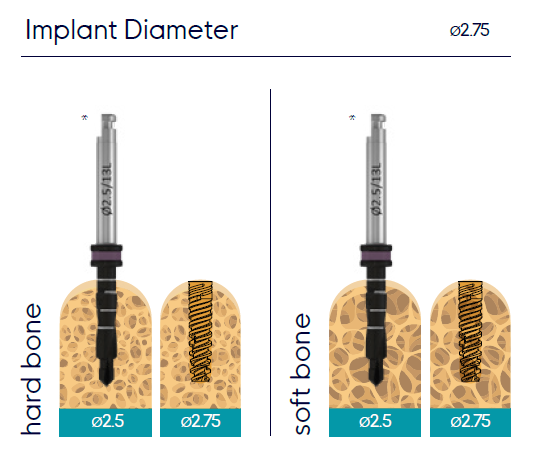

All measurements are in mm. *For initial drilling, you may use Tri-step drill instead of ∅2, ∅2.8 and ∅3.2 drills in sequence.
NP CloseFit™
Narrow Implant 3.0mm
With more than 10 years of proven clinical experience, these uniquely designed small diameter implants of 2.75mm & 3.0mm, have an especially narrow body & collar to provide a perfect solution that addresses narrow ridges in atrophic jaws for exceptional esthetic’s results. The strong Conical Connection designed to minimize micro movements.

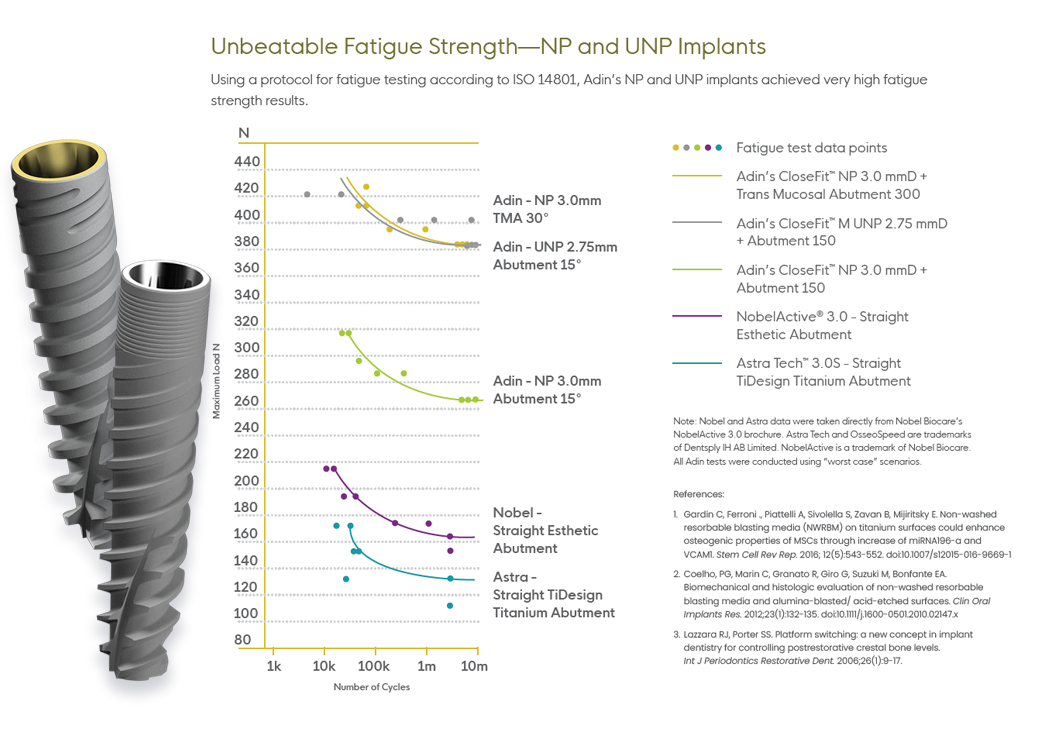

The CloseFit™ NP is a uniquely designed implant with an especially narrow body and a 3.0mm prosthetic platform diameter. The strong and solid ClosFit™ conical-hex connection enables this implant to be used in the lower and upper jaw. With high quality and narrow platform switching, the CloseFit™ NP 3.0mm has proven to have a very high fatigue strength and best comparative results, what makes it the most successful and leading narrow platform implant.

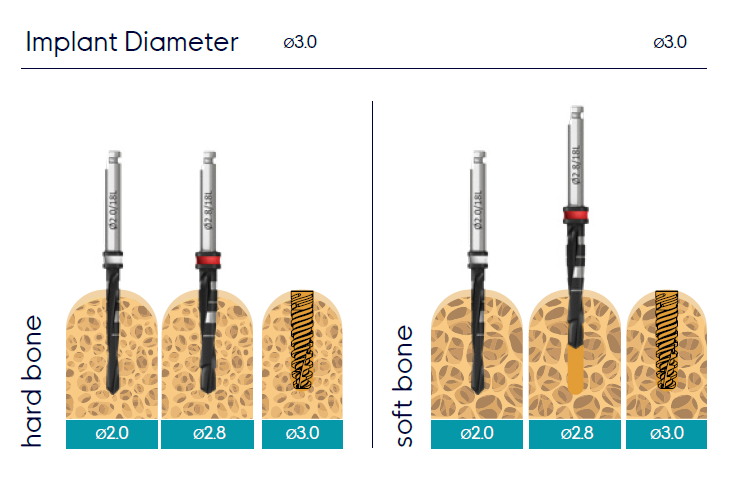

All measurements are in mm. *For initial drilling, you may use Tri-step drill instead of ∅2, ∅2.8 and ∅3.2 drills in sequence.
RP CloseFit™
Dental Implant 3.5mm
Our strong CloseFit™ Conical Connection is designed for optimal seating while reducing and virtually eliminating micromovements. Appropriate for immediate function/loading capability in all bone types.
CloseFit™ implants are designed to be used in all indications and in all regions of the lower and upper jaws. The back-tapered coronal portion is designed to reduce pressure and enable healthy cortical bone around the implant collar.
Implant professionals who seek to minimize micro movements between dental implant and abutment and eliminate potential bone loss will greatly benefit from Adin’s CloseFit™ spiral implant system, which features an extremely strong, stable and solid conical-hex connection.
The CloseFit’s tapered core implant and spiral tap includes a unique tip and double lead thread design, which enables bone slicing rather than scraping. The implant strength and stability is suited for optimal repositioning at diverse angles within the lower and upper jaw.
The CloseFit™ implants feature Adin’s OsseoFix™ – Titanium implant surface treatment that uses gritting with calcium phosphate media that is debris free and has been designed to achieve the desired roughness levels needed for optimal osseointegration. The OsseoFix™ is biocompatible.

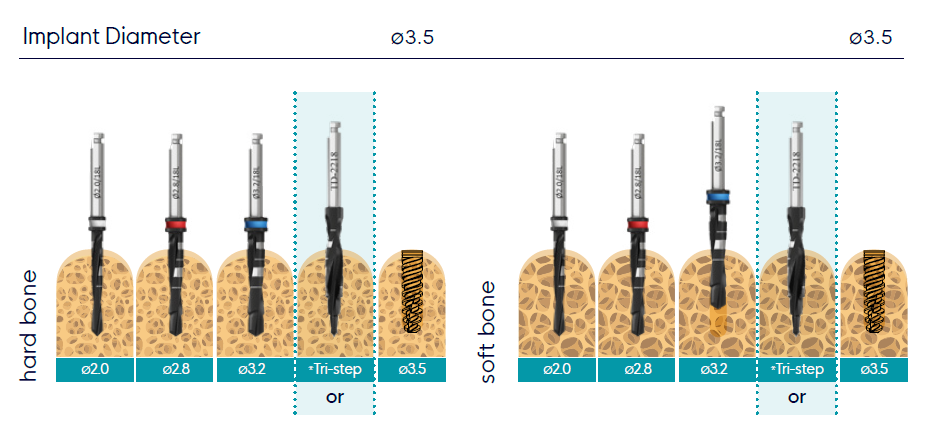

All measurements are in mm. *For initial drilling, you may use Tri-step drill instead of ∅2, ∅2.8 and ∅3.2 drills in sequence.
WP CloseFit™
Dental Implant 4.3mm & 5mm
Our strong CloseFit™ Conical Connection is designed for optimal seating while reducing and virtually eliminating micromovements. Appropriate for immediate function/loading capability in all bone types.
CloseFit™ implants are designed to be used in all indications and in all regions of the lower and upper jaws. The back-tapered coronal portion is designed to reduce pressure and enable healthy cortical bone around the implant collar.
Implant professionals who seek to minimize micro movements between dental implant and abutment and eliminate potential bone loss will greatly benefit from Adin’s CloseFit™ spiral implant system, which features an extremely strong, stable and solid conical-hex connection.
The CloseFit’s tapered core implant and spiral tap includes a unique tip and double lead thread design, which enables bone slicing rather than scraping. The implant strength and stability is suited for optimal repositioning at diverse angles within the lower and upper jaw.
The CloseFit™ implants feature Adin’s OsseoFix™ – Titanium implant surface treatment that uses gritting with calcium phosphate media that is debris free and has been designed to achieve the desired roughness levels needed for optimal osseointegration. The OsseoFix™ is biocompatible.
All measurements are in mm. *For initial drilling, you may use Tri-step drill instead of ∅2, ∅2.8 and ∅3.2 drills in sequence.
Impression
Our components for taking impressions for all restoration types can be successfully utilized for digital or conventional protocols either implantlevel or abutment level procedures.
Our broad range of solutions and flexible designs enable easy and accurate restorative planning, whether you’re dealing with a single tooth, multiple teeth, bridge or full mouth rehabilitation.
Restoration
Our TMA™ (Trans Mucosal Abutment) system is indicated for multiple-unit, screw-retained restorations and may be used in combination with an implant level framework design.
The TMA™ system is used to elevate the restorative seating platform when restoration at implant level is not indicated or practical due to the depth or angle of the implant.
The TMA™ System is designed to allow better prosthetics access when using implants with divergent angles accommodate full and partial edentulous arches, especially when using angled implants and all-on-x technique for full arch restoration.
The TMA™ abutment system is available in straight or angled (17°,30°,45°), engaging the Conical Connection for indexing, with a selection of collar heights. Abutments are delivered with handles for easy insertion and to assist with seating.
Tools & Kits
Successful surgical procedures start with having the right instruments and tools to ensure your desired treatment outcomes are met. That’s why our range has everything you need, including drills, keys, ratchets and insertion tools. Not only do they make procedures safer and simpler, they result in an enhanced patient experience as well. Our Surgical Kits streamline and simplify your implant procedures.
How to use – Guided Surgery CloseFit™ NP/UNP
The adinguide™ was planned with you in mind, bringing the guided surgery world to your clinic.
“
As a dentist and implantologist who lectures on implant design and guided surgery there are several features of an implant system critical to its success, the Adin CloseFit™ system checks all the boxes.
Dr. Paul S. Mozer DDS, MSc, DICOI | USA
“
All my full mouth implant cases for last 7 years are Adin implants. 5 years follow up, not a single biological failure. That’s ADIN!
